Product Description
PORTAL Collection
Framed geometry and layered light create a distinctive architectural outline for post-top placement.
Model: 3159
Design details
- Framed geometry. The frame establishes an architectural form.
- Layered light. Light and structure define the spatial composition.
- Distinctive outline. A geometric silhouette gives the post light a recognizable profile.
Size options
| Size | Dimensions (mm / in) |
|---|---|
| 200 | 200 × 200 × 145 mm (7.9 × 7.9 × 5.7 in) |
| 300 | 300 × 300 × 195 mm (11.8 × 11.8 × 7.7 in) |
| 400 | 400 × 400 × 245 mm (15.7 × 15.7 × 9.6 in) |
Materials and product details
| Item | Specification |
|---|---|
| Body material | Stainless steel |
| Shade material | PE |
| Protection rating | IP65 |
| Standard colour | Sparkle silver grey |
| Mounting | Post-top mounted |
Hardwired configurations
| Size | Light source · CCT · power | Input voltage |
|---|---|---|
| 200 | LED · 3000 K · 3 W | 110–265 V |
| 300 | LED · 3000 K · 5 W | 110–265 V |
| 400 | LED · 3000 K · 7 W | 110–265 V |
Solar configurations
| Size | Light source · CCT · power | Battery capacity |
|---|---|---|
| 200 | LED · 3000 K · 2 W | 4000 mAh |
| 300 | LED · 3000 K · 3 W | 4000 mAh |
| 400 | LED · 3000 K · 4 W | 4000 mAh |
Plan your product collection
For importer, distributor and brand inquiries, share model 3159, your preferred size and configuration, quantity and destination market. Contact MINGDADA to discuss your OEM/ODM requirements.

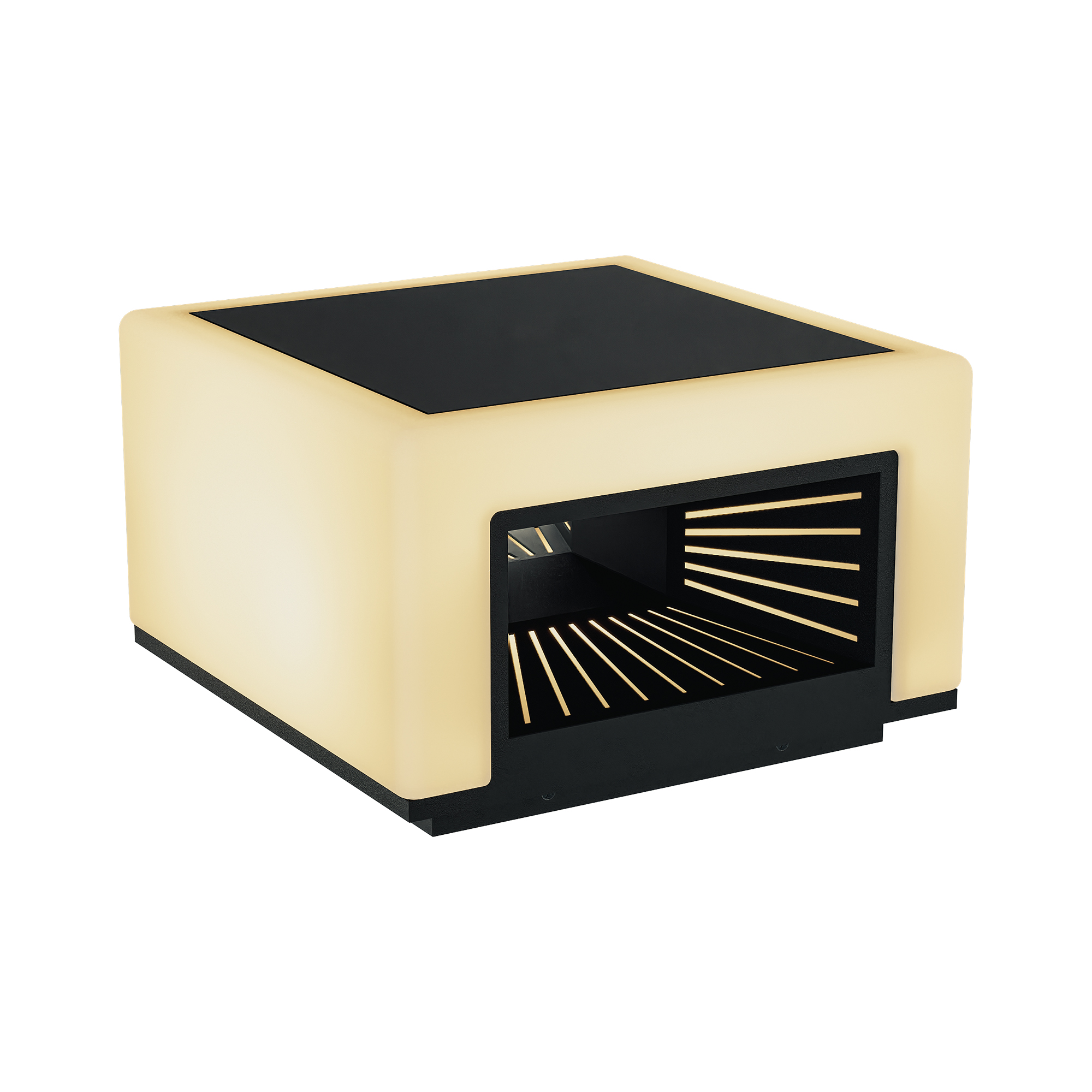

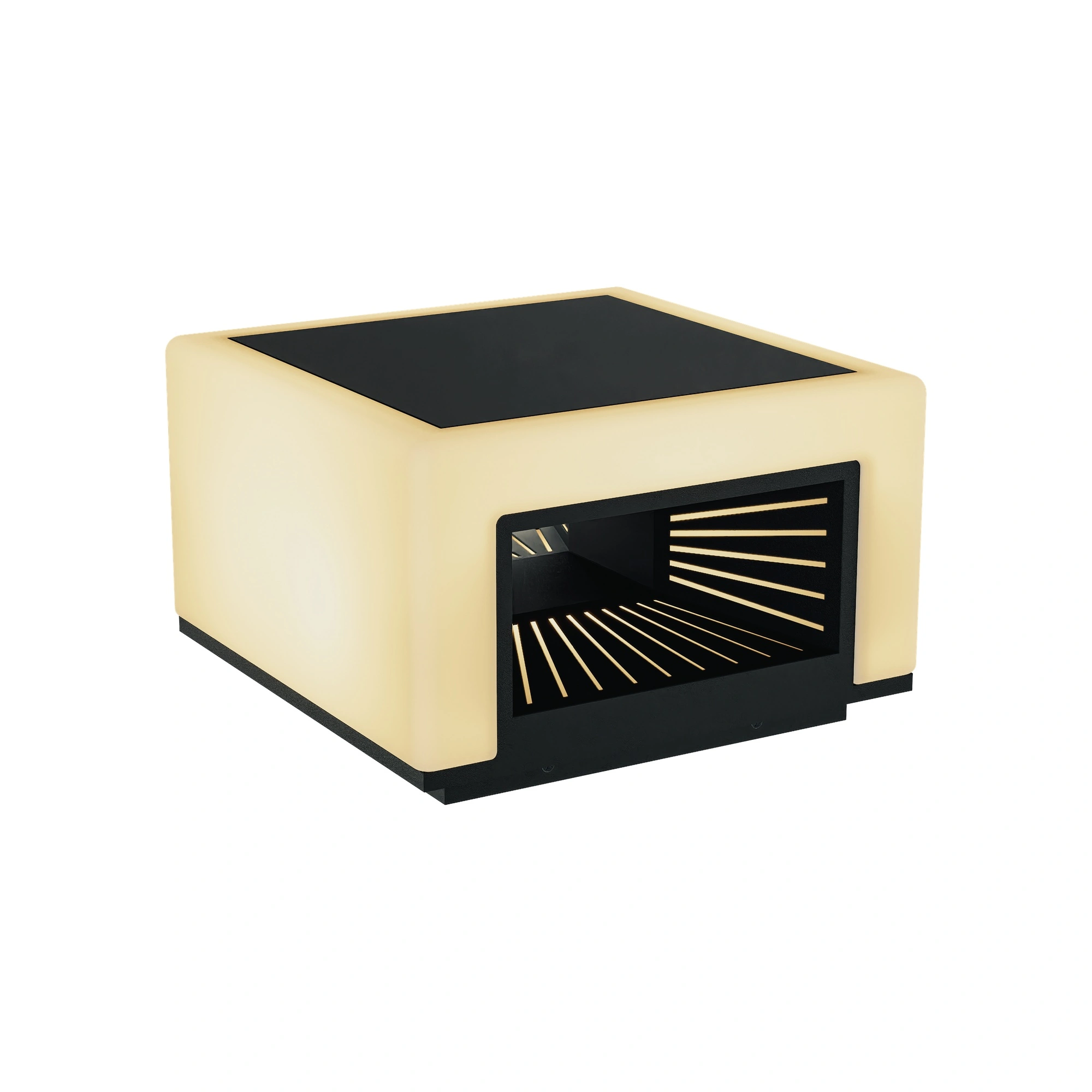

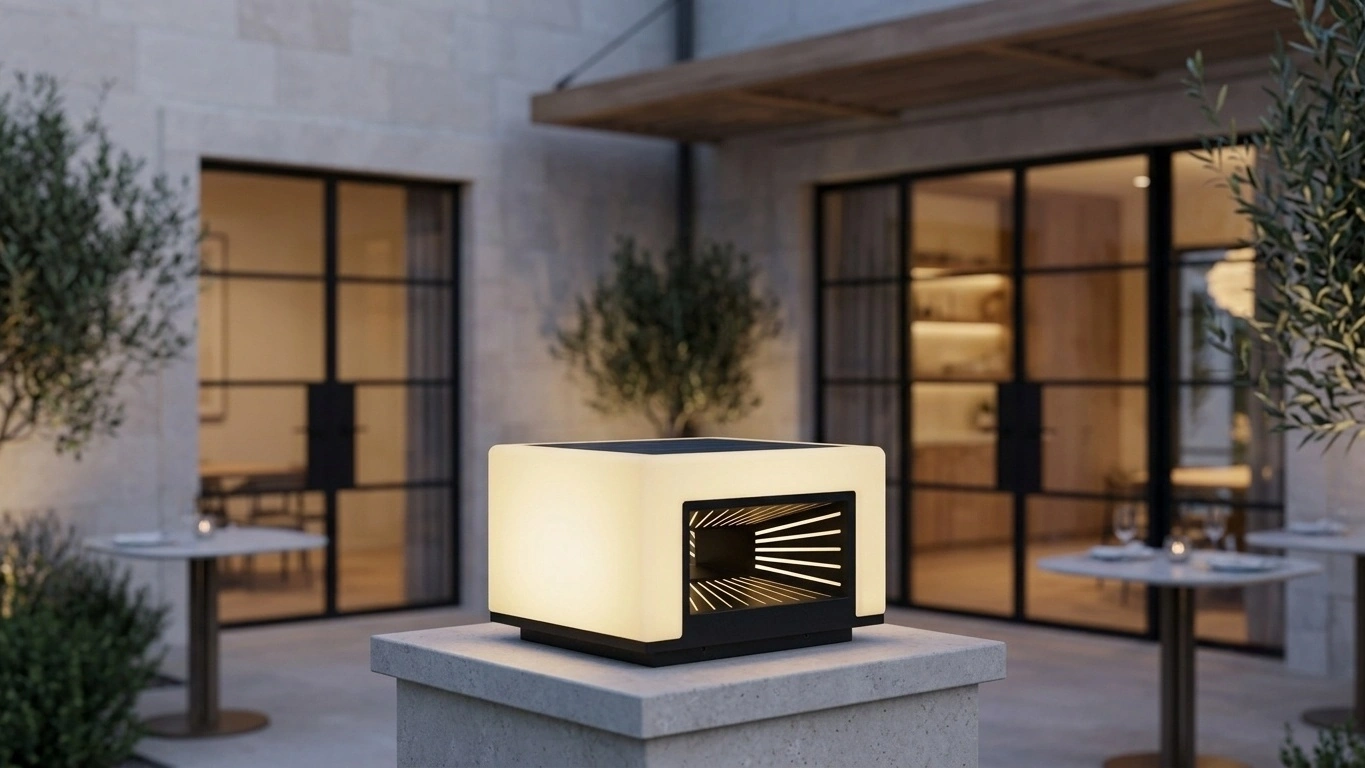

PORTAL Framed Post Light
Framed geometry and layered light create an architectural post light. Three sizes with solar or hardwired configurations.
