Product Description

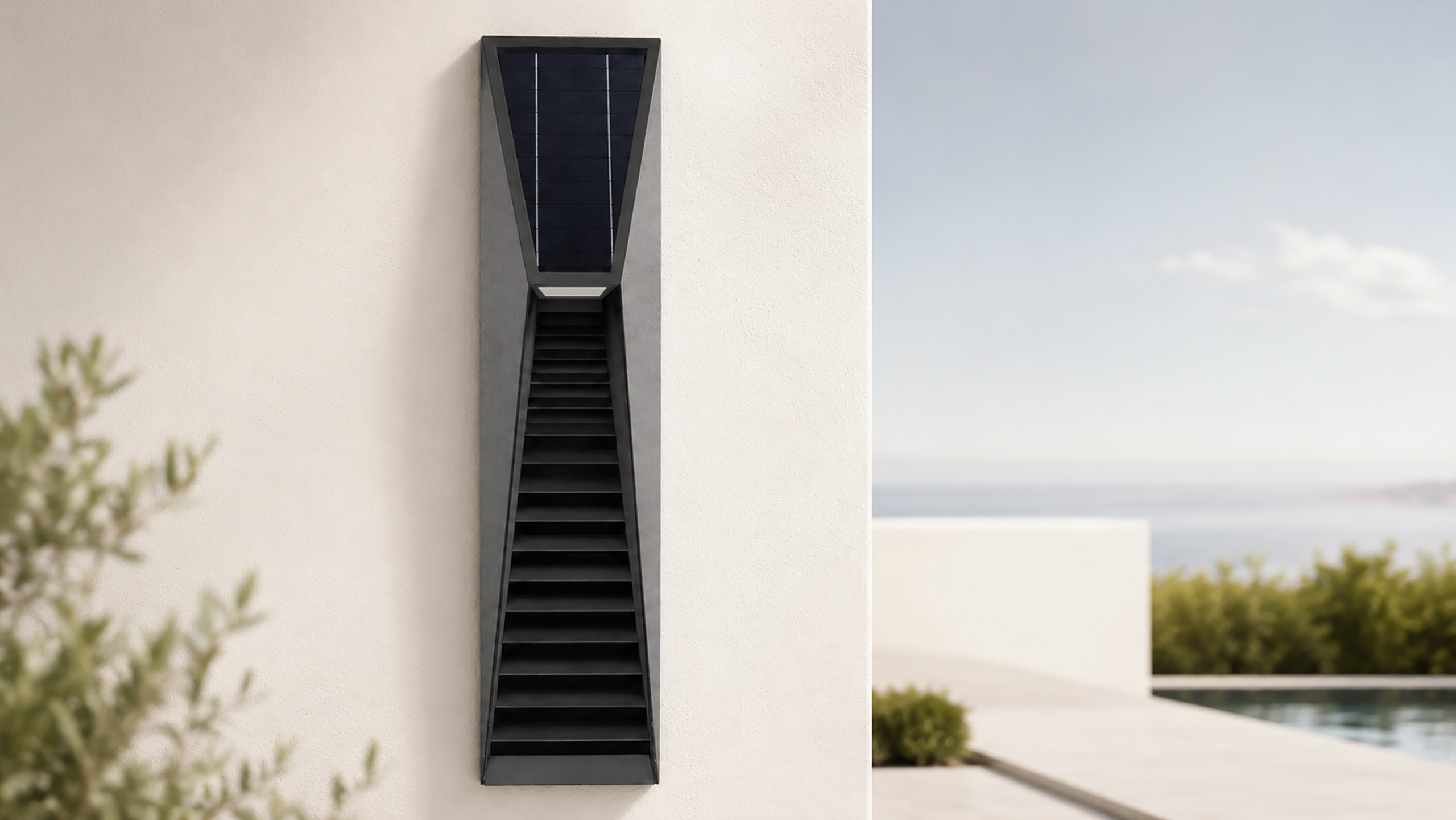

CANYON COLLECTION
Architecture Meets Nature
To integrate lighting into architecture through concealed light sources
and clean geometry, creating subtle yet layered illumination.
Minimalist Architectural Design
Linear Geometry ｜ Layered Forms ｜ Recessed Light Source ｜ Architectural Integration

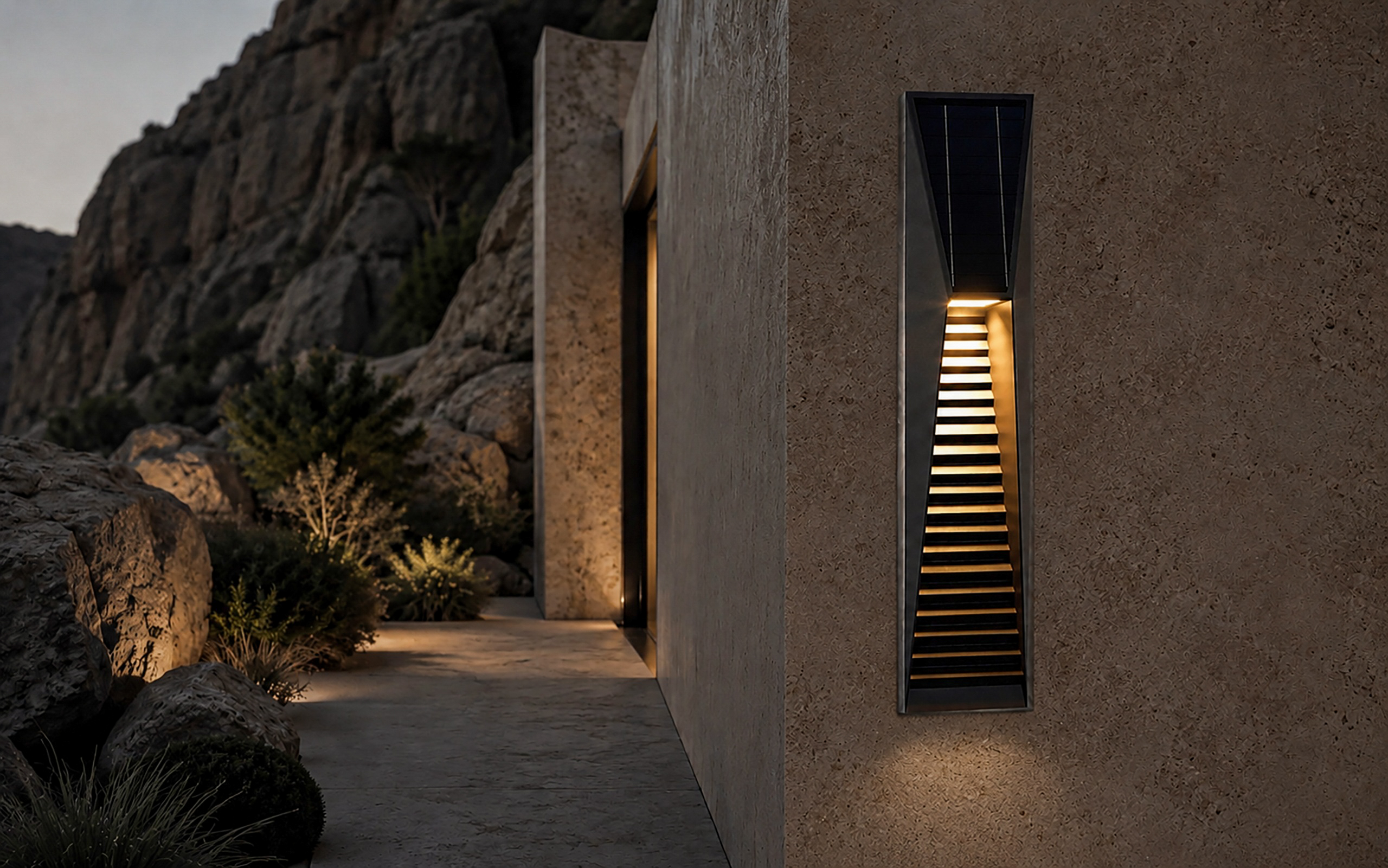

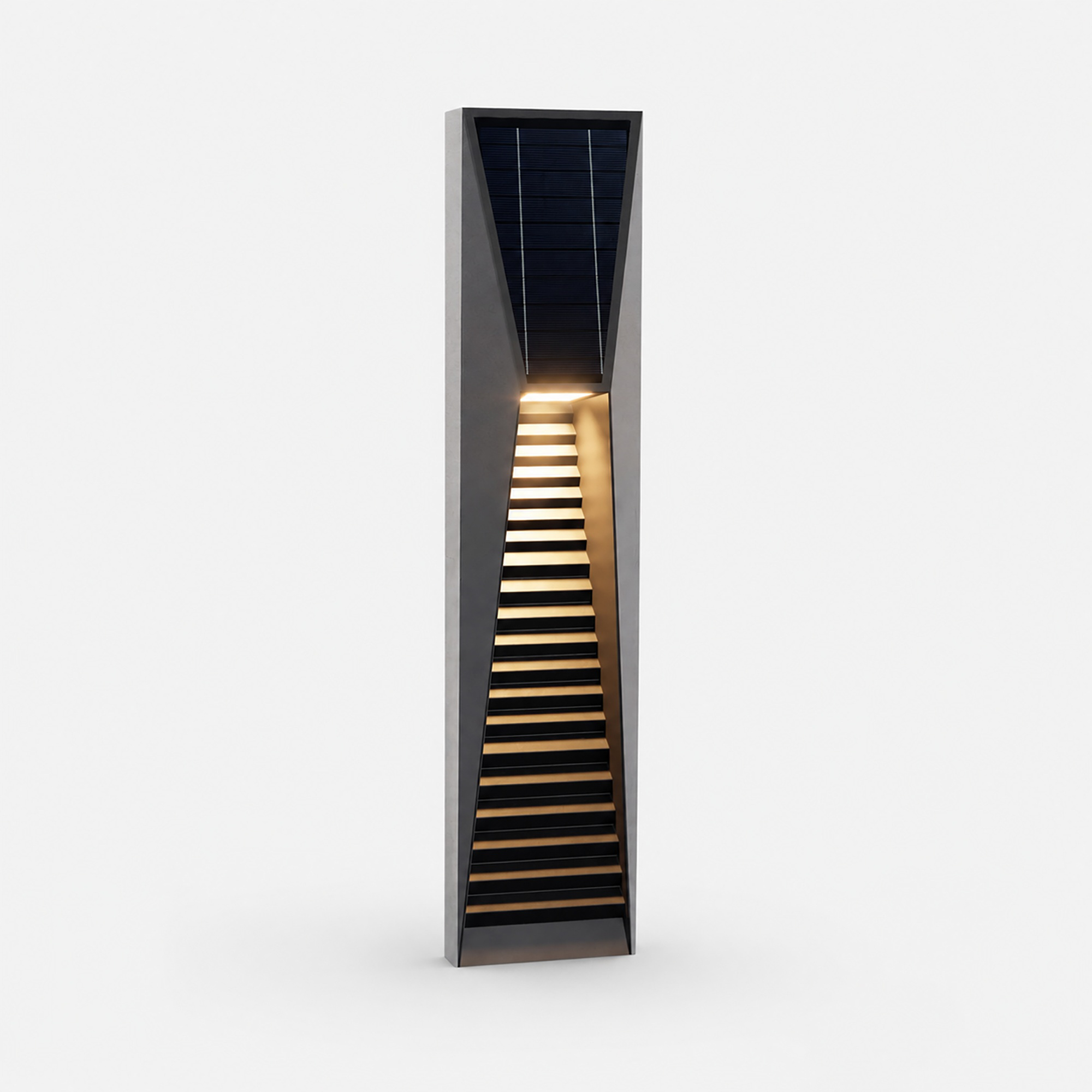

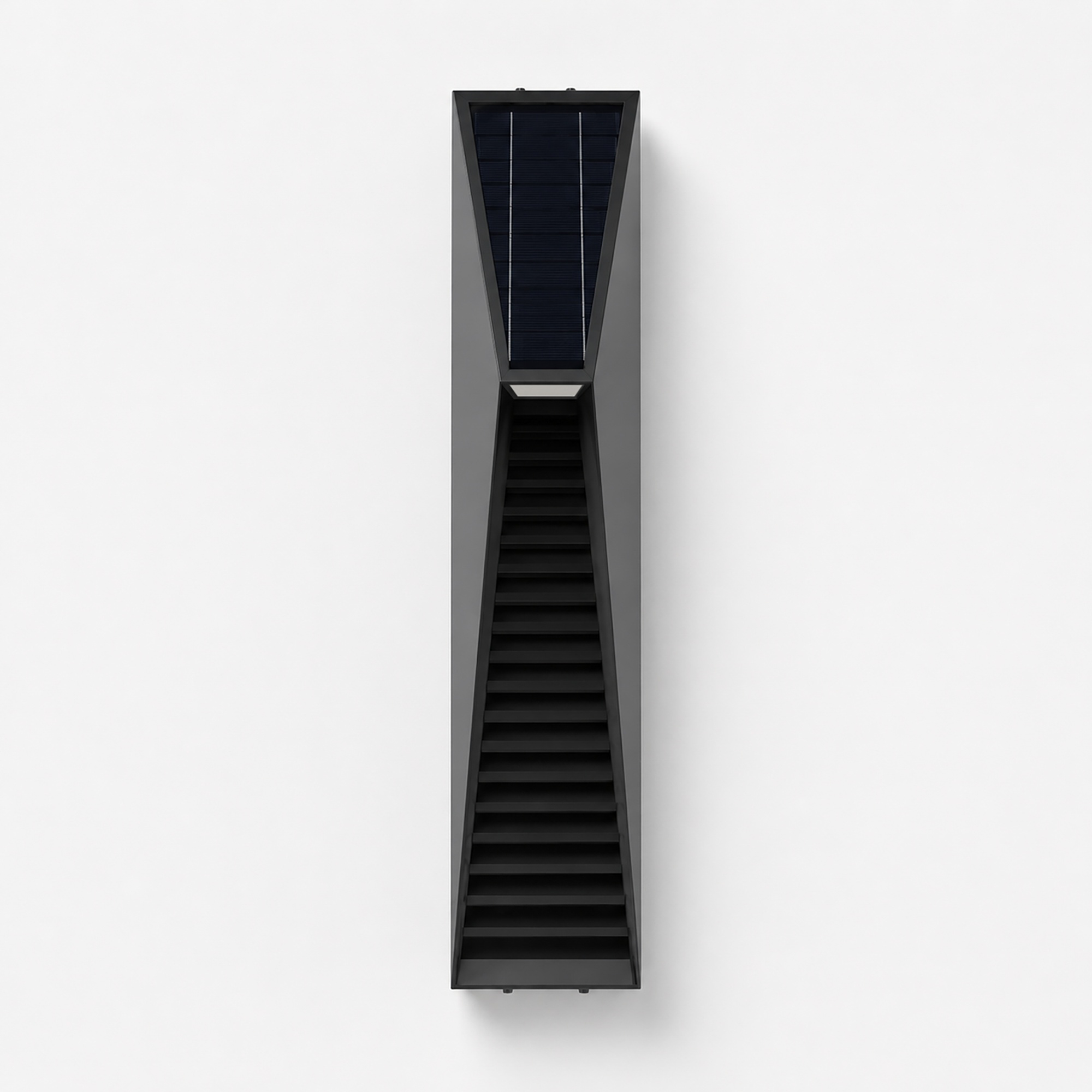

Inspired by Canyon Geometry
Inspired by canyon rock formations shaped by time, the Canyon Collection expresses the
relationship between light, shadow and architectural structure. Light emerges softly from
within layered forms, creating a seamless dialogue between nature and architecture.

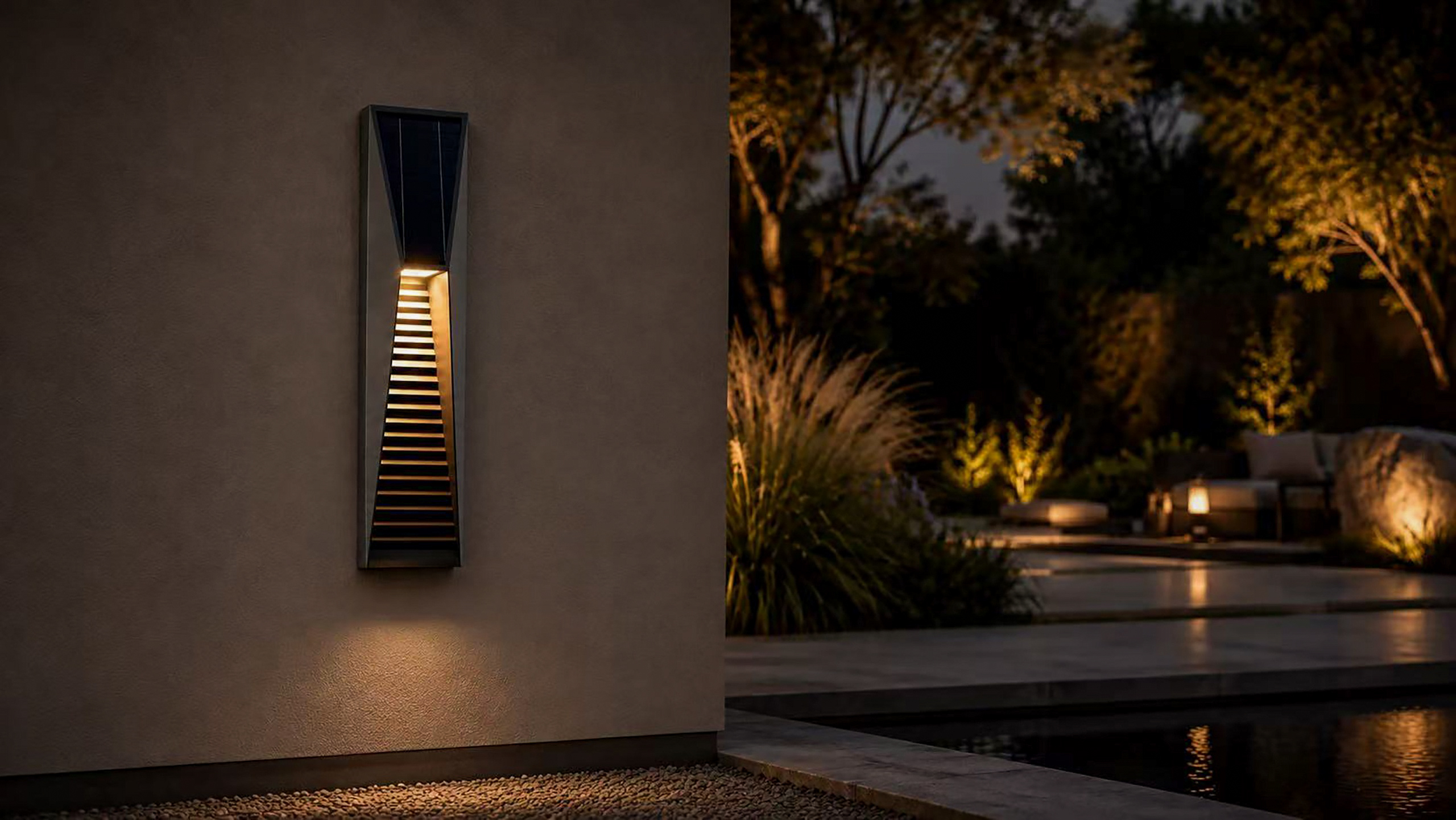

VILLA APPLICATION

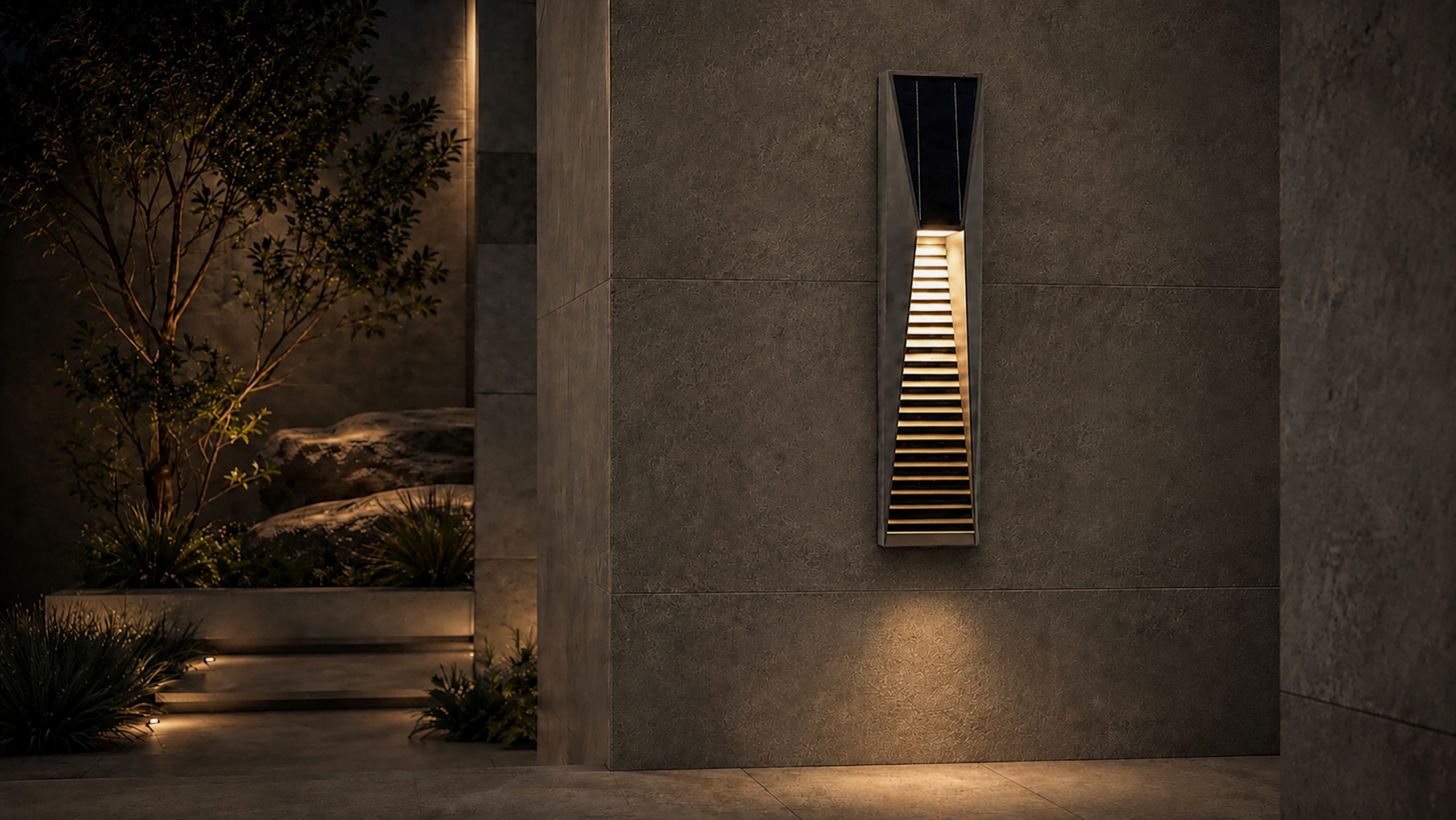

HOTEL APPLICATION

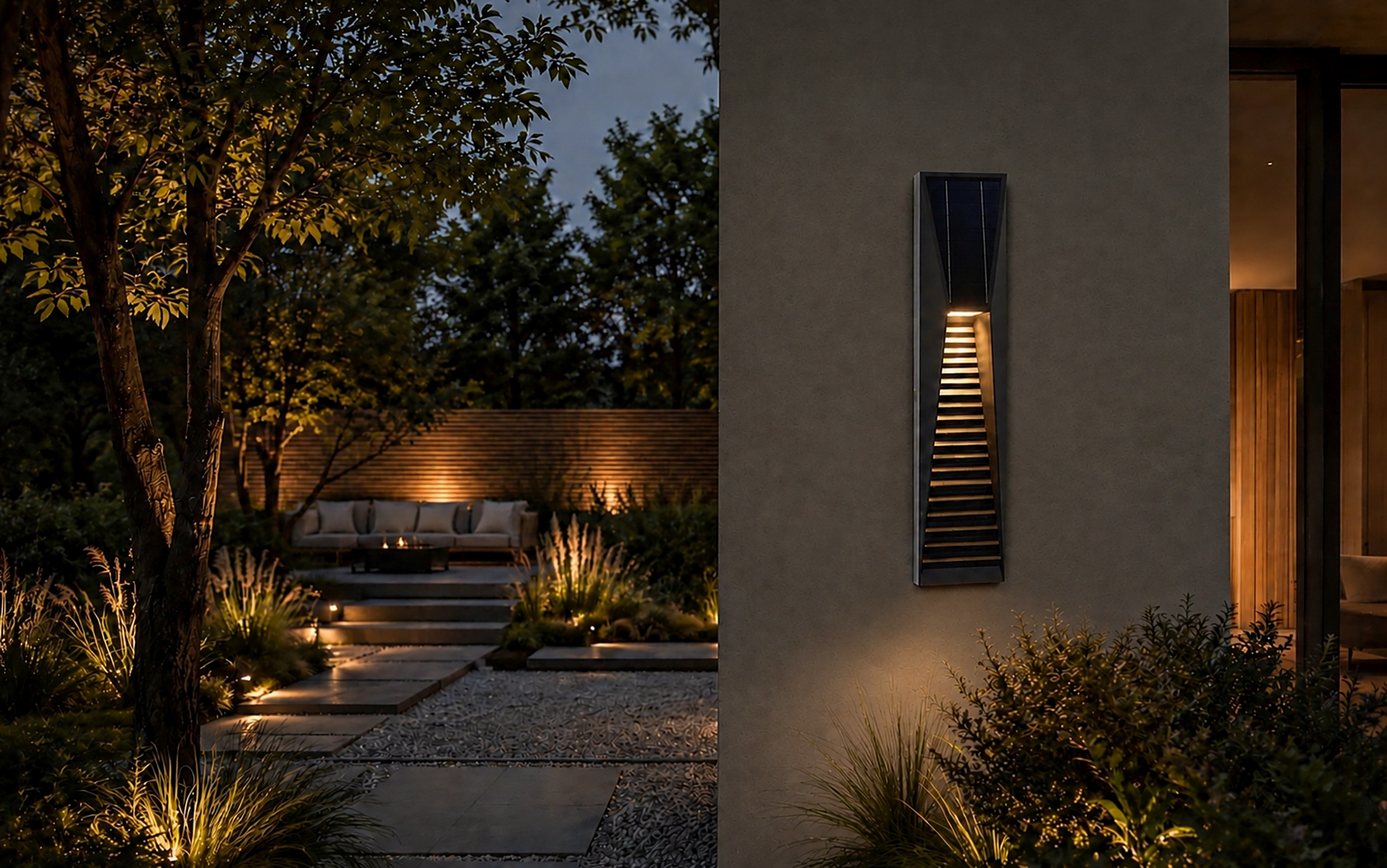

GARDEN APPLICATION

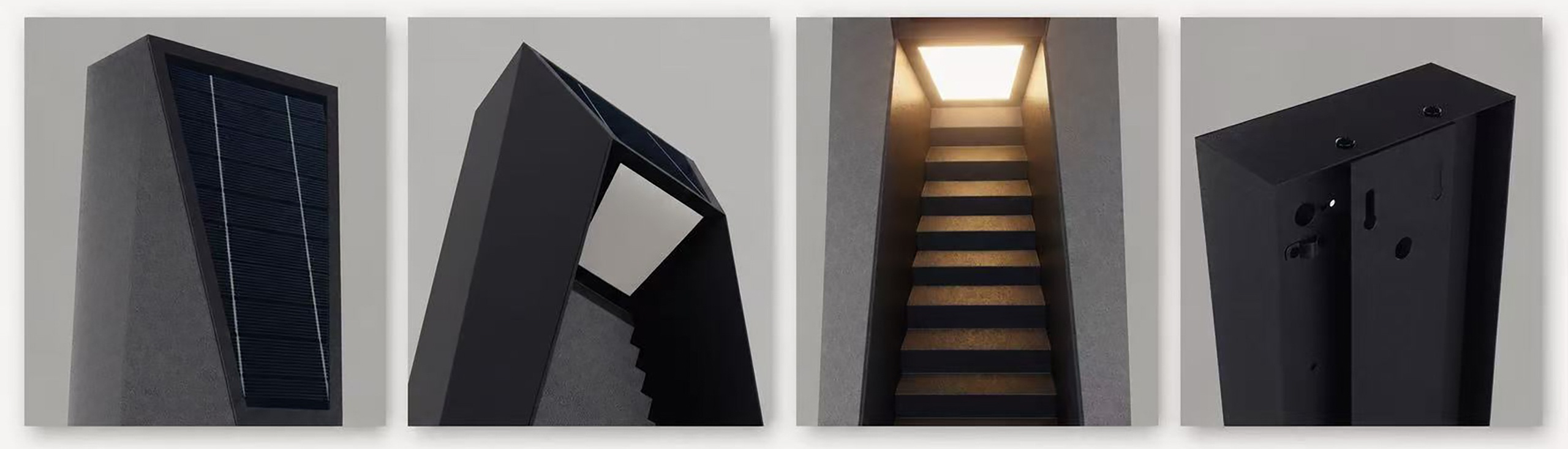

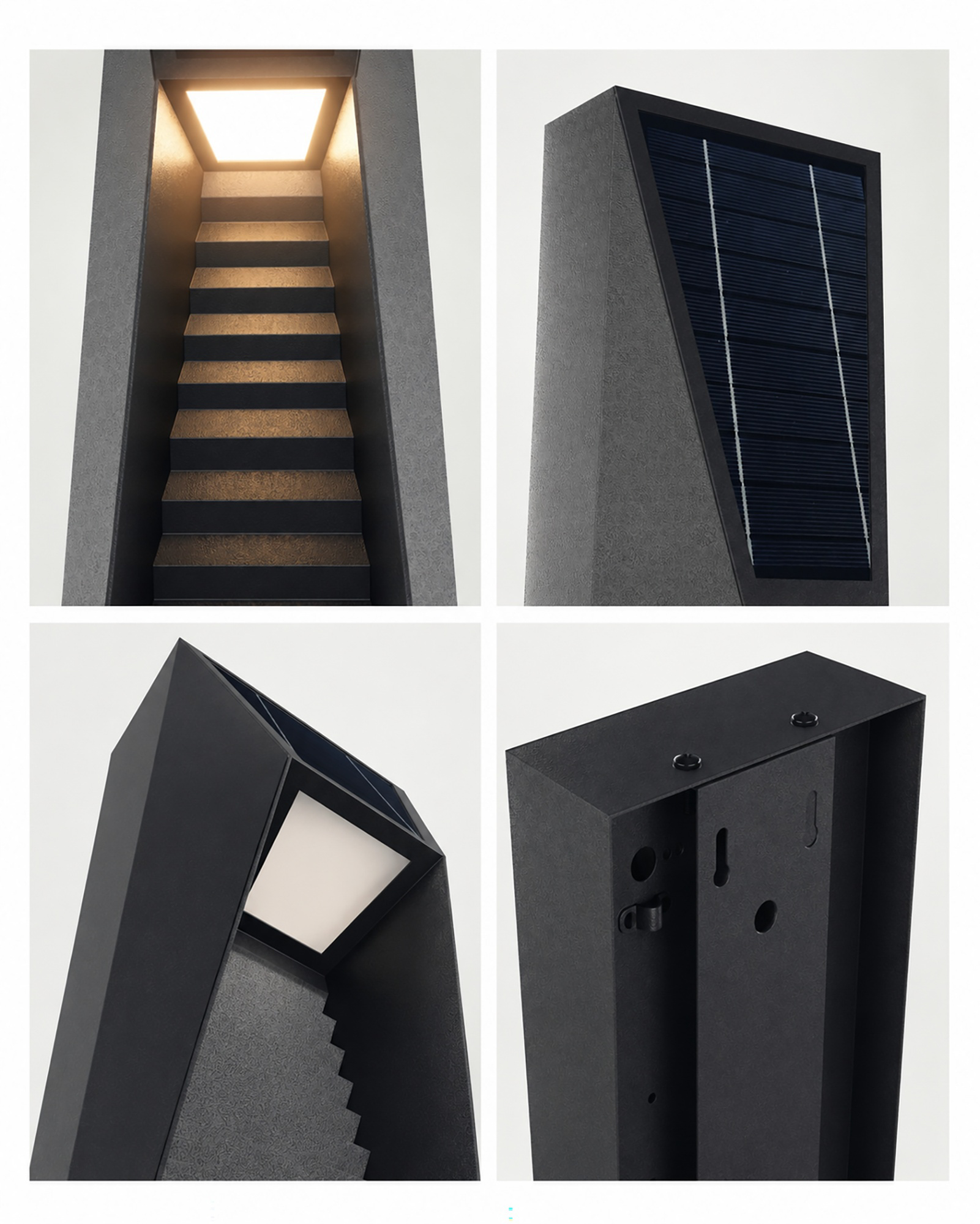

Architectural Top Structure | Stainless steel main structure | Uniform Light Diffusion | Outdoor Durability

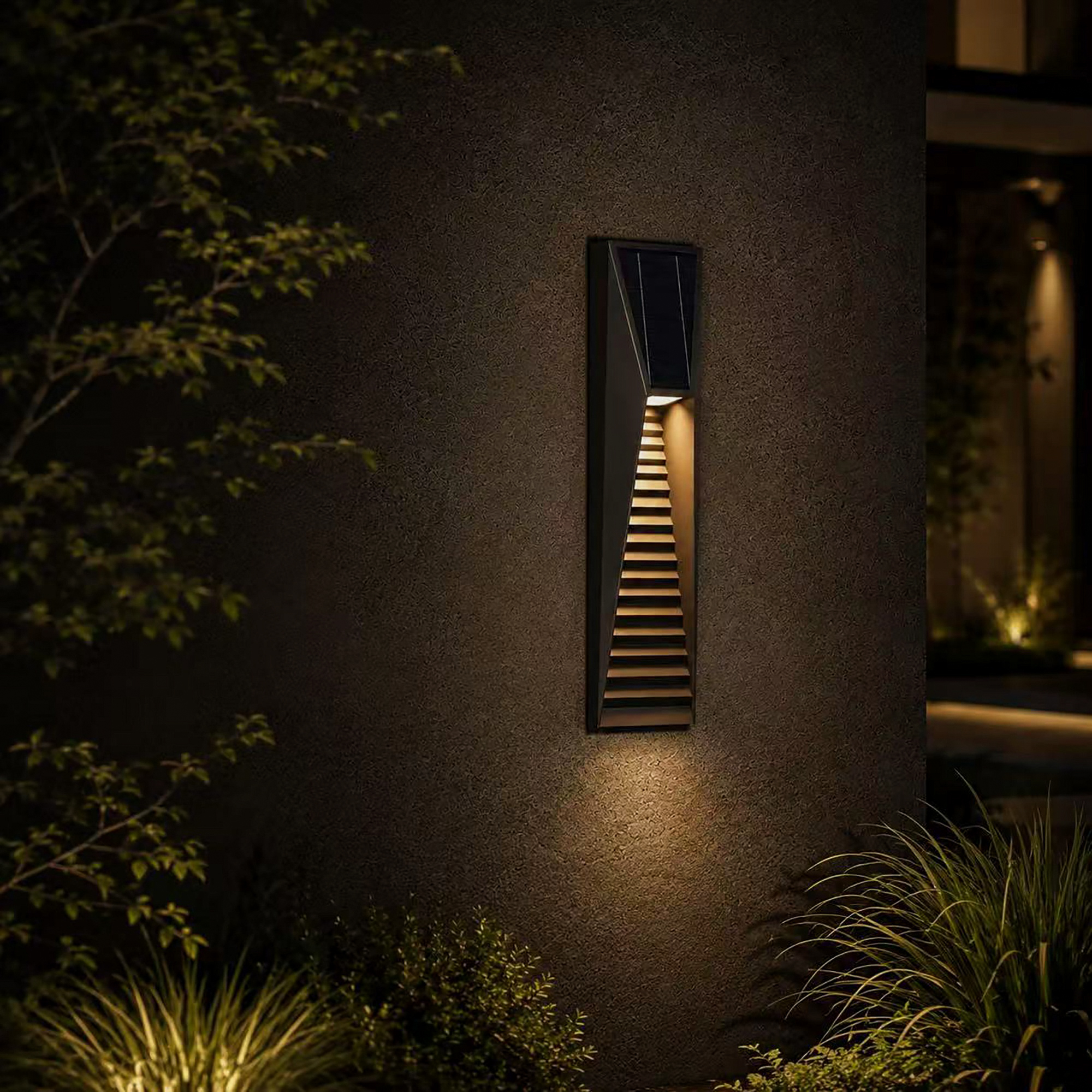

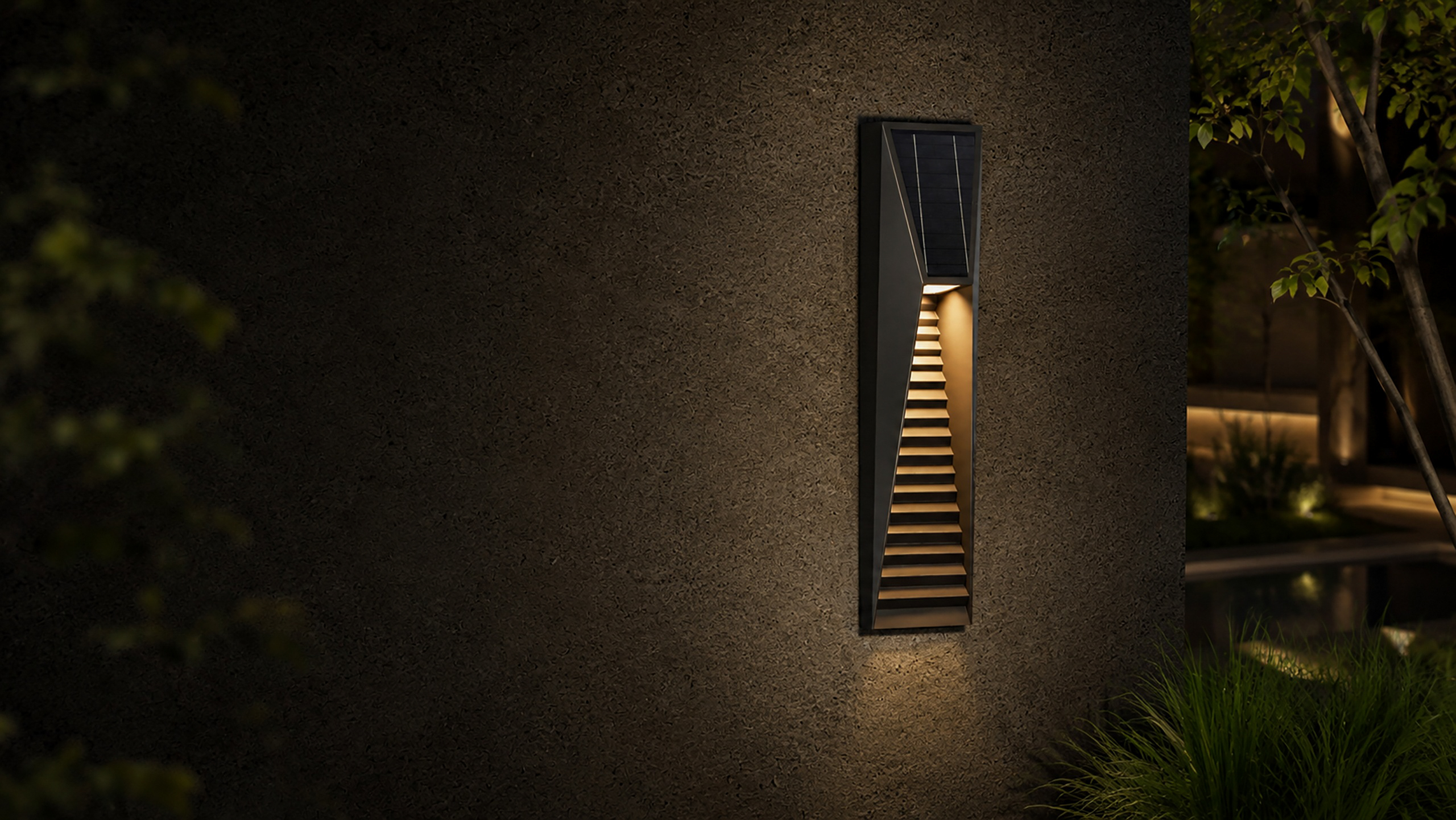

Lighting Experience
Warm Ambient Lighting,Glare-Free Visual Comfort,
Landscape Enhancement,Architectural Night Identity.

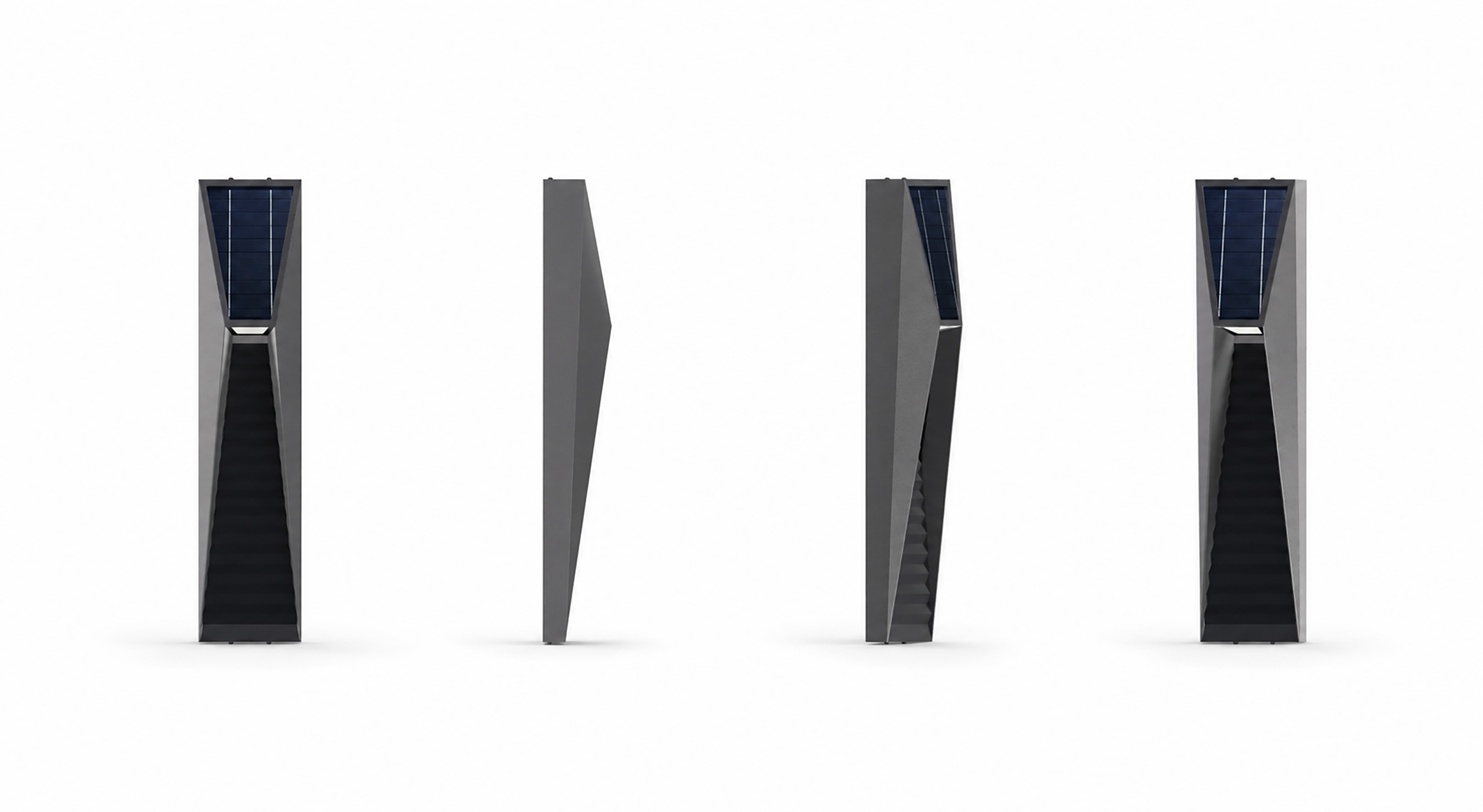

Collection Overview
CAN-WL-600 CAN-WL-800 CAN-WL-1000

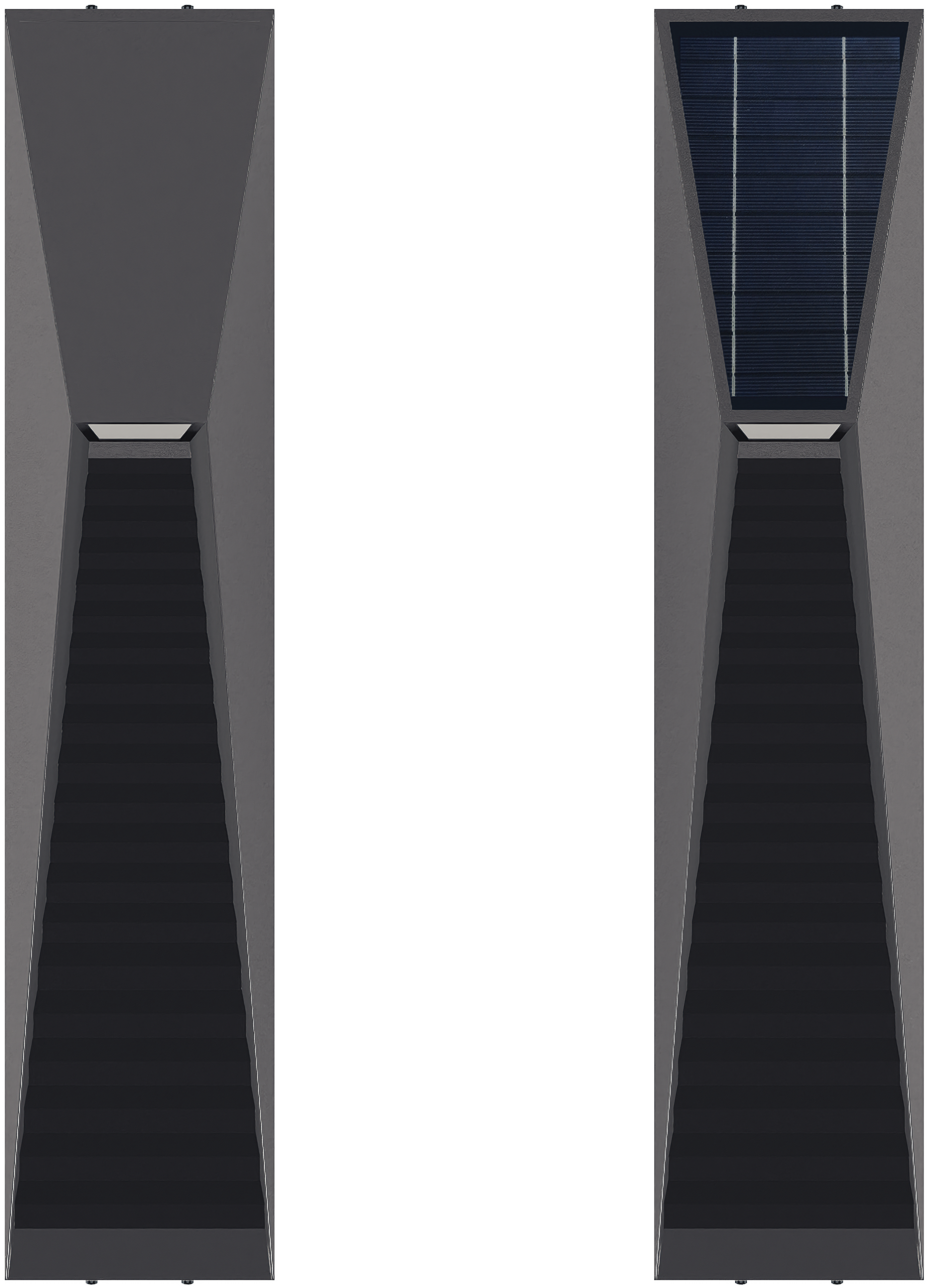

Wired Version Solar Version
CAN-WL-600 CAN-WL-800 CAN-WL-1000
General Parameters
| Parameter | Value |
|---|---|
| Material 材质 | Stainless Steel + Acrylic |
| Finish 表面处理 | Powder Coated |
| CCT 色温 | 3000K |
| CRI 显色指数 | >80 |
| Installation 安装方式 | Wall Mounted |
Solar Version
| Model | Size | Solar Panel | Battery |
|---|---|---|---|
| CAN-WL-600-S | W135 × D90 × H600 |
2W | 2000mAh |
| CAN-WL-800-S | W170 × D100× H800 |
3W | 4000mAh |
| CAN-WL-1000-S | W190 × D105 × H1000 |
4W | 6000mAh |
Wired Version
| Model | Size | Voltage | Power |
|---|---|---|---|
| CAN-WL-600-W | W135 × D90 × H600 | AC85-240V | 5W |
| CAN-WL-800-W | W170 × D100× H800 | AC85-240V | 8W |
| CAN-WL-1000-W | W190 × D105 × H1000 | AC85-240V | 12W |
Documentation
Technical Resource Center
Datasheet · Installation Guide · CAD Drawing · 3D Model · IES File · Certificates
Contact Us For Full Technical Support
OEM ｜ ODM ｜ Project Support

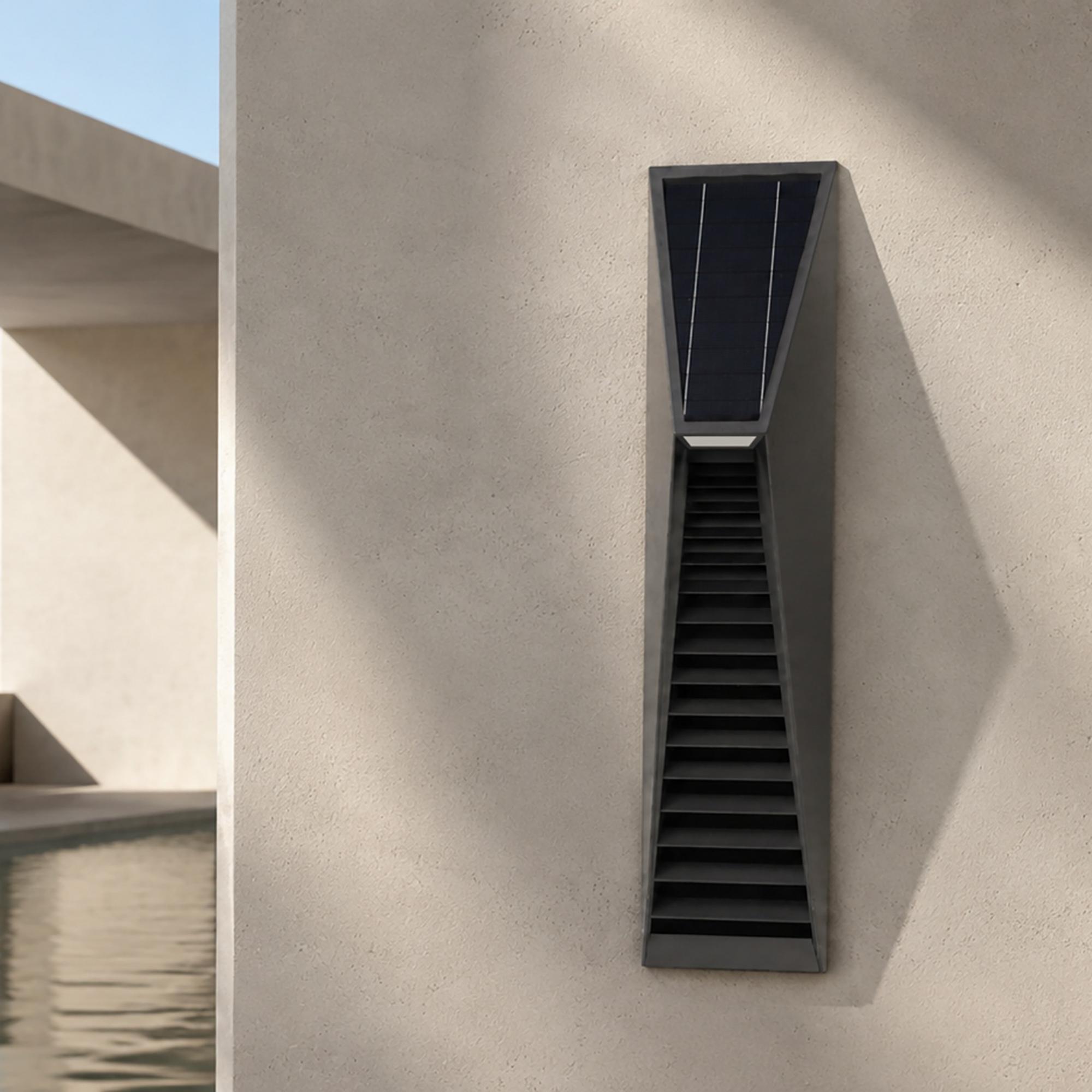

CANYON SERIES
